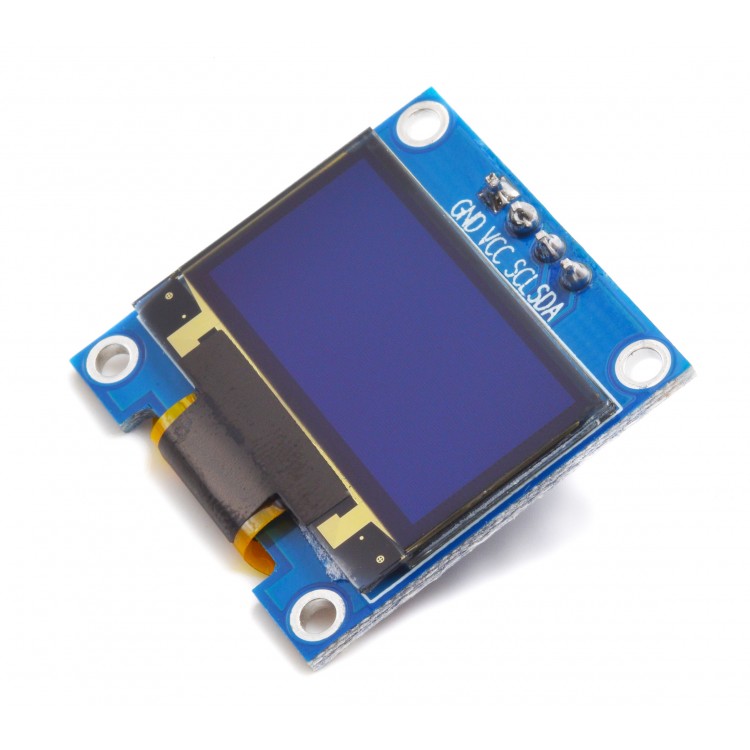

0.96″ OLED Display Specifications

Display

• Display Size: 0.96 inch
• Resolution: 128 × 64 pixels
• Display Type: OLED (Organic LED)
• Color: Monochrome (usually white, blue, or yellow-blue)
• Viewing Angle: ~160°
• Active Area: ~21.74 mm × 11.18 mm

Interface

• Communication: I2C or SPI (depends on module)
• Default I2C Address: 0x3C (common)
• Controller IC: SSD1306 or compatible

Electrical

• Operating Voltage: 3.3V to 5V (module includes regulator)
• Logic Level: 3.3V compatible (works on 5V boards via onboard converter)
• Power Consumption: Very low (OLED pixels only consume power when lit)

Physical

• Module Dimensions: approx. 27 mm × 27 mm × 4 mm
• Pin Count: 4 pins (I2C) or 7–8 pins (SPI version)
• Mounting Holes: usually none (depends on board type)

Pins (I2C version)

1. GND – Ground
2. VCC – 3.3V–5V
3. SCL – Clock
4. SDA – Data

Other Features

• No backlight required (self-lit pixels)
• High contrast and fast refresh rate
• Works with Arduino, ESP8266, ESP32, Raspberry Pi
